Description

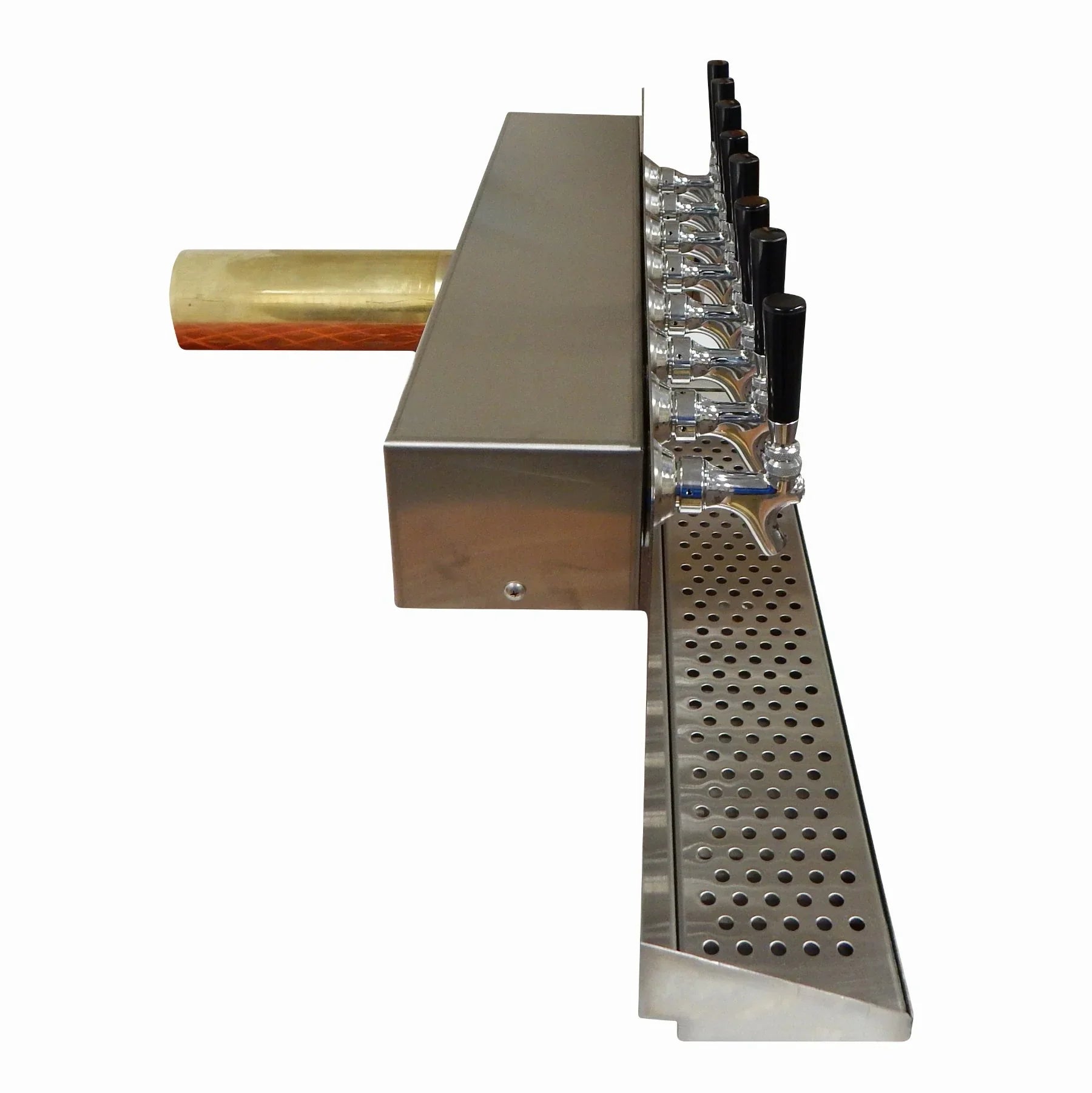

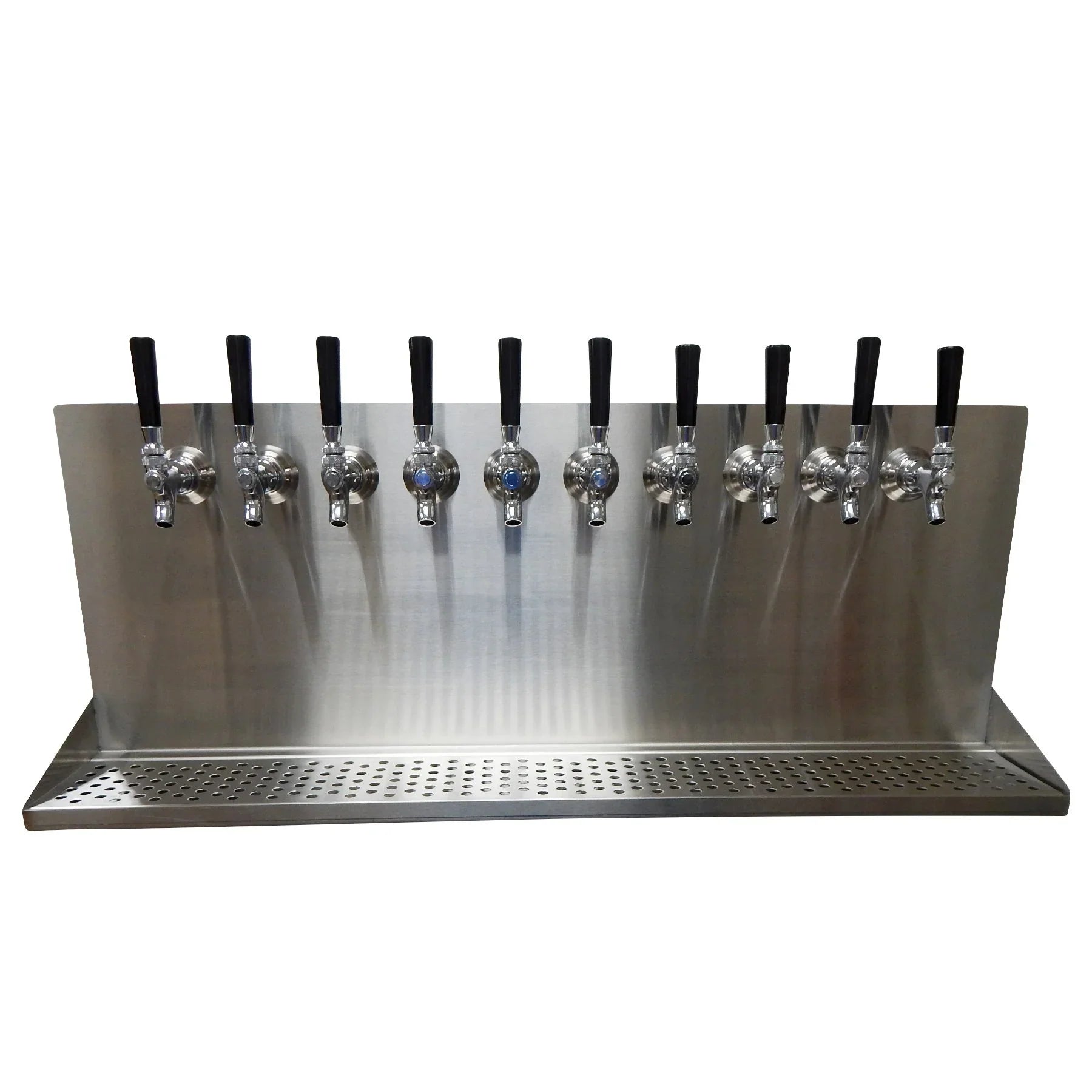

Wall Mount Dispensers — 14 to 24 Faucets
Available in air-blown or glycol configurations, these wall mount dispensers are built for a clean, professional installation. Air-blown models include two 4" O.D. stainless steel tubes (6" each) attached to the back of the box for straightforward connection to 4" flex pipe.
The box and tray are constructed from 16-gauge stainless steel throughout. Back boxes measure 5" high × 7" wide. Trays are 14" high × 8" wide with a centered drain — now standard at 8" wide across all models. Faucets are spaced 3" apart, and each unit includes 6 feet of 3/16" tubing per faucet.
QUICK SPECS
- Up to 24 faucets
- Air cooled
- 16-gauge stainless steel box and tray
- Back box: 5"H × 7"W
- Tray: 14"H × 8"W with centered drain — 8" wide standard
- 3" faucet spacing
- Includes 6' of 3/16" tubing per faucet
- Air-blown models: dual 4" O.D. S.S. tubes (6" ea.) for 4" flex pipe connection
