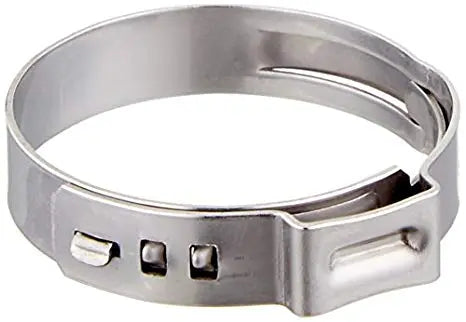

Stepless Stainless Steel Oetiker Clamps — All Sizes
Stepless (Oetiker-style) clamps create a permanent, leak-free crimp on beer and gas line connections. Unlike worm-drive hose clamps, stepless clamps provide 360° even clamping pressure with no overlap gap — the professional standard for draft beer system installations. Sold individually. $0.40 each.
Quick Size Guide — Common Draft Beer Lines
| Tubing Type | Tubing ID | Recommended Clamp | Variant |
|---|---|---|---|
| Vinyl beer line | 3/16" ID | STP-133 | 13.3 mm |
| Poly beer line | 1/4" ID | STP-105 | 10.5 mm |
| Poly beer line | 5/16" ID | STP-123 | 12.3 mm |
| Vinyl beer line | 5/16" ID | STP-157 | 15.7 mm |
| Vinyl or poly | 5/16"–3/8" ID | STP-162 | 16.2 mm |
| Vinyl or poly | 3/8" ID | STP-140 or STP-170 | 14.0 or 17.0 mm |
| Vinyl air/glycol line | 1/2" ID | STP-210 | 21.0 mm |

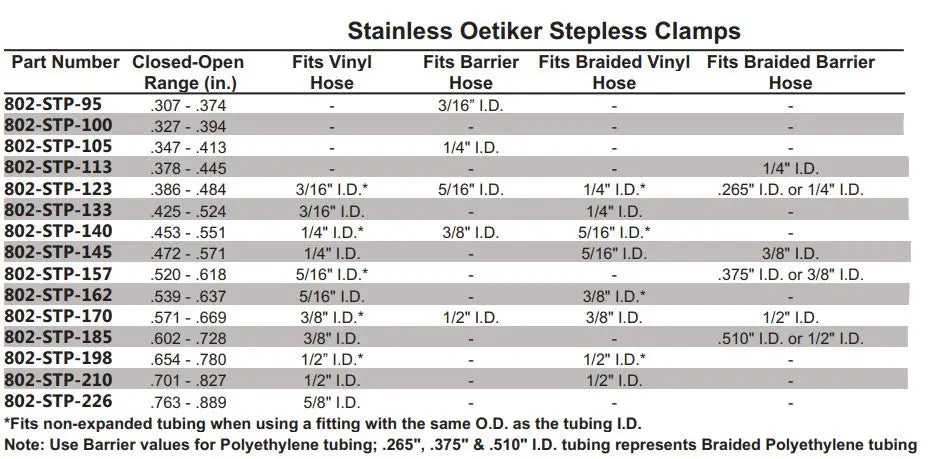

Full Size Chart
| SKU | Clamp Range | Variant | Common Use |
|---|---|---|---|
| STP-95 | 0.307–0.374" (7.8–9.5 mm) | 9.5 mm | — |
| STP-100 | 0.327–0.394" (8.3–10.0 mm) | 10.0 mm | — |
| STP-105 | 0.347–0.413" (8.8–10.5 mm) | 10.5 mm | 1/4" ID poly hose |
| STP-113 | 0.378–0.445" (9.6–11.3 mm) | 11.3 mm | — |
| STP-123 | 0.386–0.484" (9.8–12.3 mm) | 12.3 mm | 5/16" ID poly hose |
| STP-133 | 0.425–0.524" (10.8–13.3 mm) | 13.3 mm | 3/16" ID vinyl hose |
| STP-140 | 0.453–0.551" (11.5–14.0 mm) | 14.0 mm | 3/8" ID poly hose |
| STP-145 | 0.472–0.571" (12.0–14.5 mm) | 14.5 mm | 1/4" ID vinyl hose |
| STP-157 | 0.520–0.618" (13.2–15.7 mm) | 15.7 mm | 5/16" ID vinyl hose |
| STP-162 | 0.539–0.638" (13.7–16.2 mm) | 16.2 mm | 5/16"–3/8" ID vinyl |
| STP-170 | 0.571–0.669" (14.5–17.0 mm) | 17.0 mm | 3/8" ID vinyl hose |
| STP-185 | 0.602–0.728" (15.3–18.5 mm) | 18.5 mm | — |
| STP-198 | 0.654–0.780" (16.6–19.8 mm) | 19.8 mm | — |
| STP-210 | 0.701–0.827" (17.8–21.0 mm) | 21.0 mm | 1/2" ID vinyl hose |
| STP-226 | 0.764–0.890" (19.4–22.6 mm) | 22.6 mm | — |
| STP-241 | 0.823–0.949" (20.9–24.1 mm) | 24.1 mm | — |
Why Stepless vs. Worm-Drive Clamps
- 360° clamping — no overlap gap, uniform pressure around the full circumference
- Permanent crimp — requires a clamp tool (pinch pliers), creates a tamper-evident connection
- Industry standard — used by professional draft beer installers and line cleaning companies
- All stainless steel — corrosion-resistant in cooler and cellar environments
Sold individually at $0.40 each. Order the quantity you need — no minimum. Priced for professional installers stocking up.
Not sure which size? Email info@wholesalebeerparts.com with your tubing ID and OD — we'll confirm the right clamp.
Pair with: 3/8" Clear Vinyl Tubing | 5/16" Blue Vinyl Tubing
