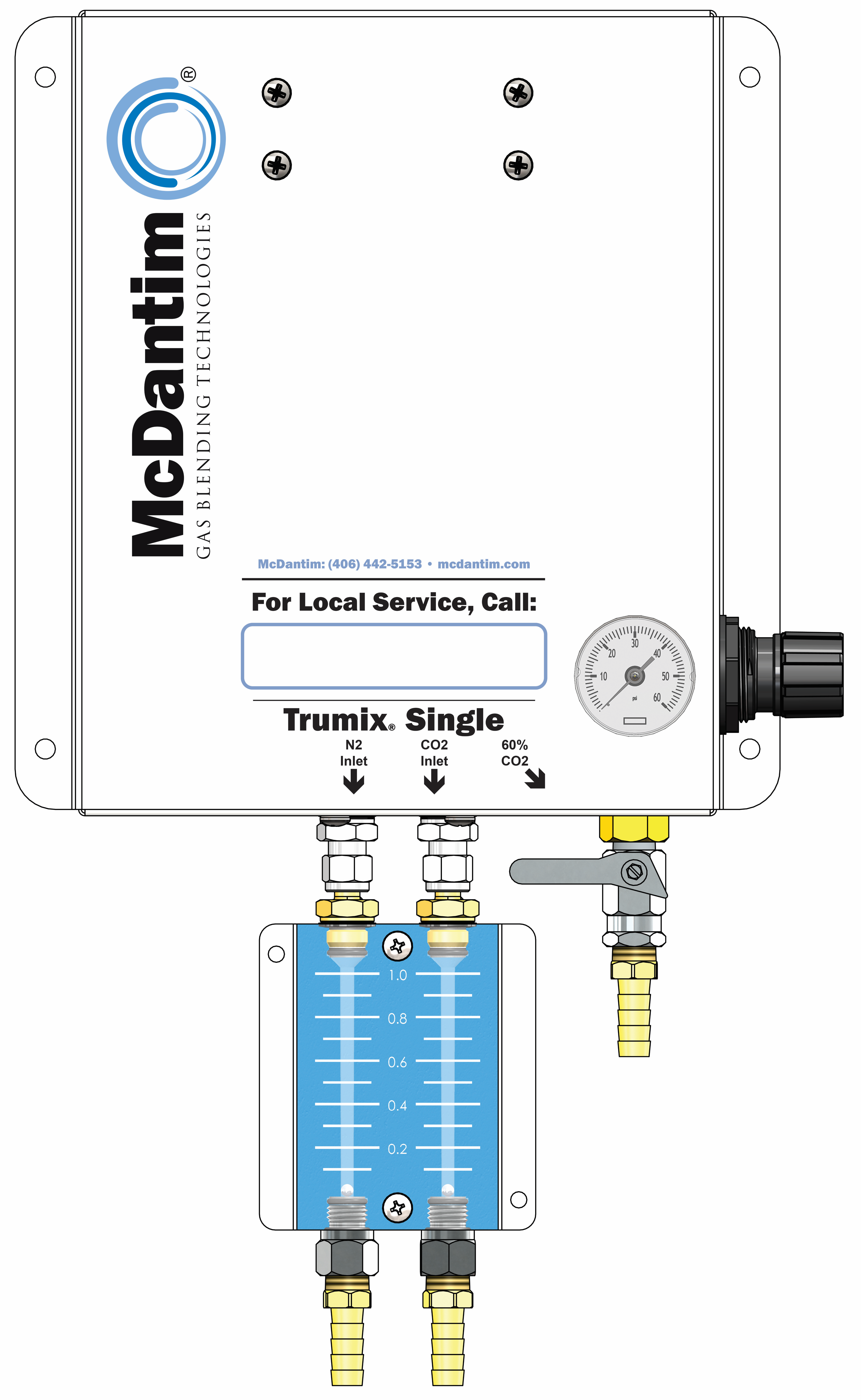

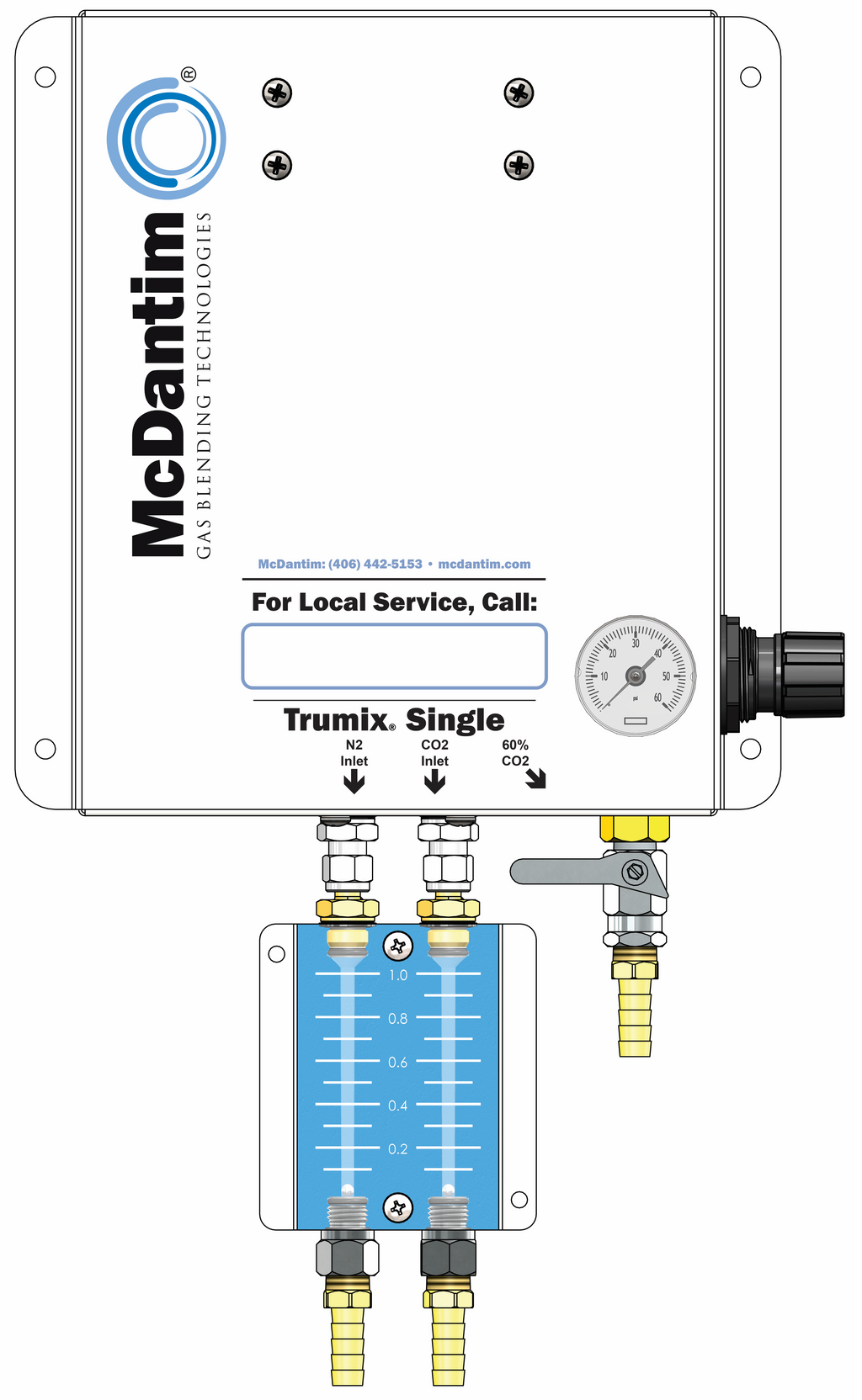

When your long draw system demands precision gas blending, the McDantim Trumix® Single Blender delivers — mixing CO2 and N2 on demand with ±2% accuracy so every tap pours exactly as intended, from nitro stouts to high-CO2 German lagers.

Why Bar and Brewery Pros Choose the McDantim Trumix® Single Blender

Why bar and brewery pros choose this

• Custom-blended to order — Each unit is built to your specified CO2/N2 ratios, giving you the flexibility to run nitrogenated beers, domestic drafts, and high-CO2 German styles on one system.
• Upgraded metal body inlet regulators — Increased durability and safety with a maximum safe working pressure up to 325 psi.
• No electrical setup required — Wall-mounts easily and installs without wiring; shuts off automatically if either supply gas fails or runs empty.
• High-capacity flow — Up to 26 kegs/hour per blend at 110 psi inlet pressure; flow range of 0.4–40 L/min (0.85–85 CFH).
• 5-Year Limited Warranty — McDantim backs every Trumix® blender with a full 5-year limited warranty.
• INCLUDES Plug & Play In-Line Leak Indicator — For enhanced system monitoring.

Specs & compatibility

• Size: 9.5" W (including mounting flanges) × 10" H × 4.5" D
• Connections: Two inlet gas lines (CO2 & N2); one mixed gas outlet line per blend
• Fittings: Standard 1/4" female NPT; hose barbs available at no charge in 1/4", 5/16", and 3/8"
• Inlet pressure range: 55–150 psi standard (customizable); upgraded regulators rated to 325 psi max
• Outlet pressure: Adjustable 0–60 psi per blend (always 10 psi below minimum inlet pressure)
• Accuracy: ±2% of full scale within 0.4–40 L/min flow range

Not sure which blends you need? Download the McDantim EasyBlend app (Android & iOS) to calculate your ideal CO2/N2 ratios before ordering.

Installation Instructions (PDF)  |  Dimensional Drawing (PDF)
