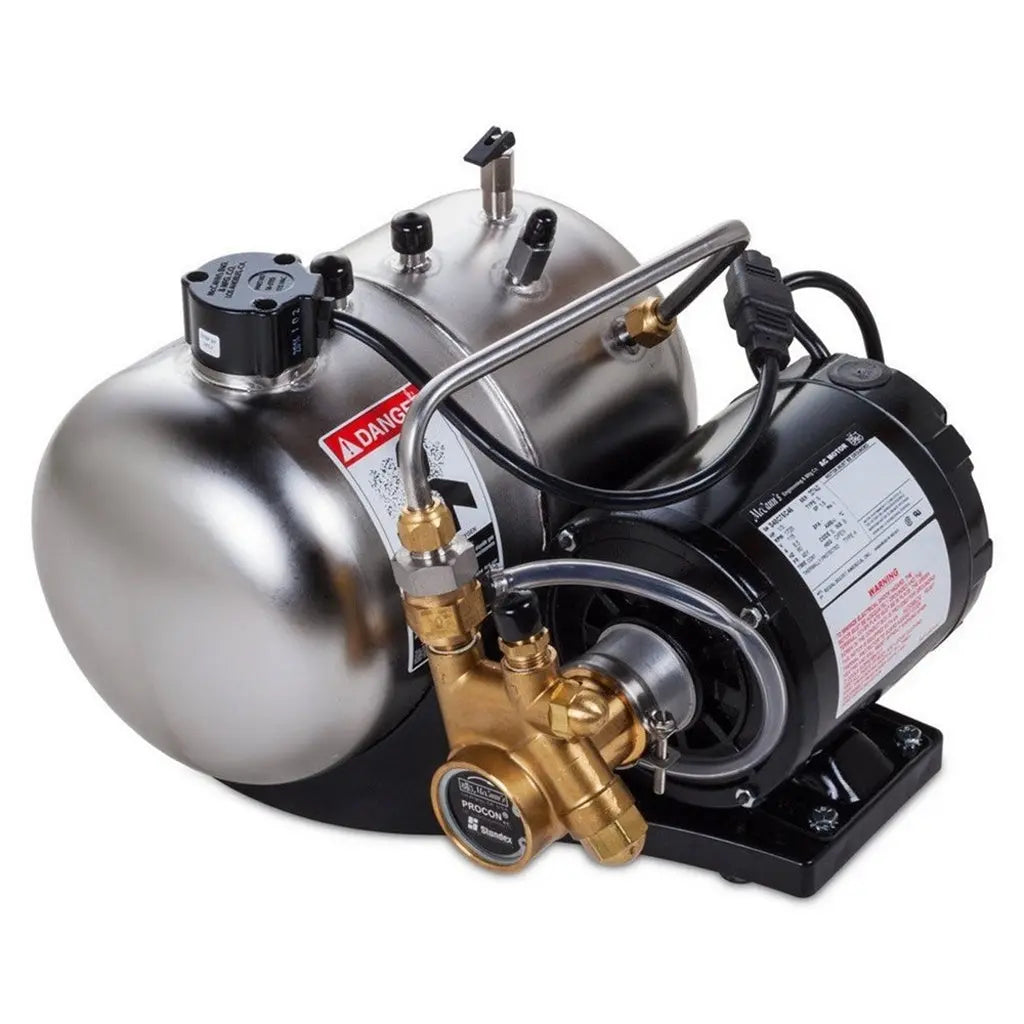

McCann's High Volume Carbonator W/ Vent Check Valve

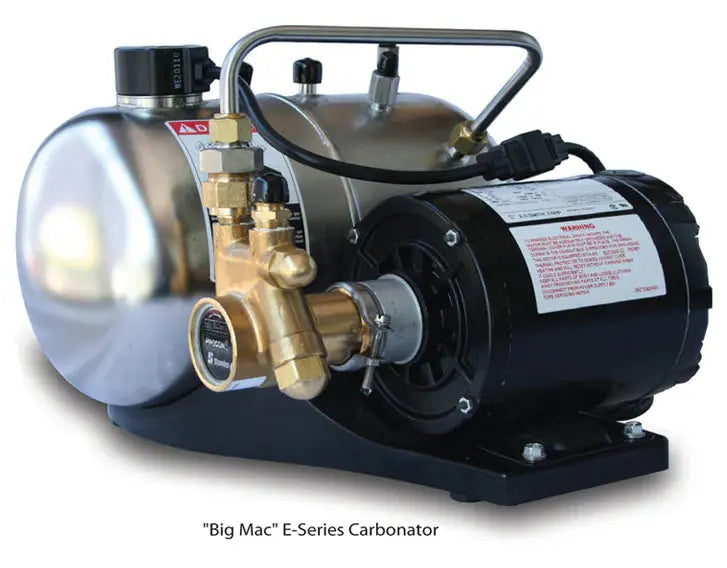

McCann’s “Big Mac” Carbonator

Reliable, High-Performance Beverage Carbonation System

The McCann’s Big Mac Carbonator is built for dependable, high-volume carbonation in commercial beverage systems. Designed with premium components and long-term durability in mind, this unit delivers consistent performance while minimizing service needs.

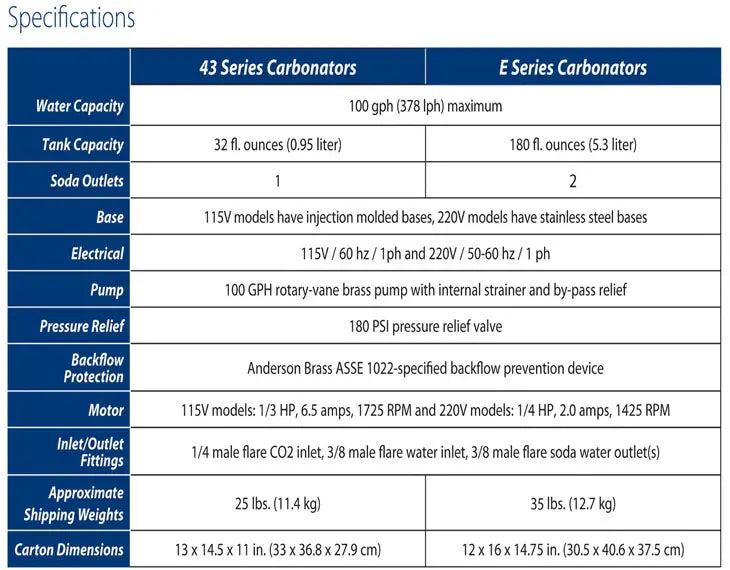

Key Specifications

• Tank Capacity: 2 Gallons

• Outlets: 2 Soda Outlets

• Motor: 1/3 HP, 115VAC, 60Hz, 7 Amps

• Pump: Brass water pump with integral 100-micron strainer
  (100 GPH, 250 PSI)

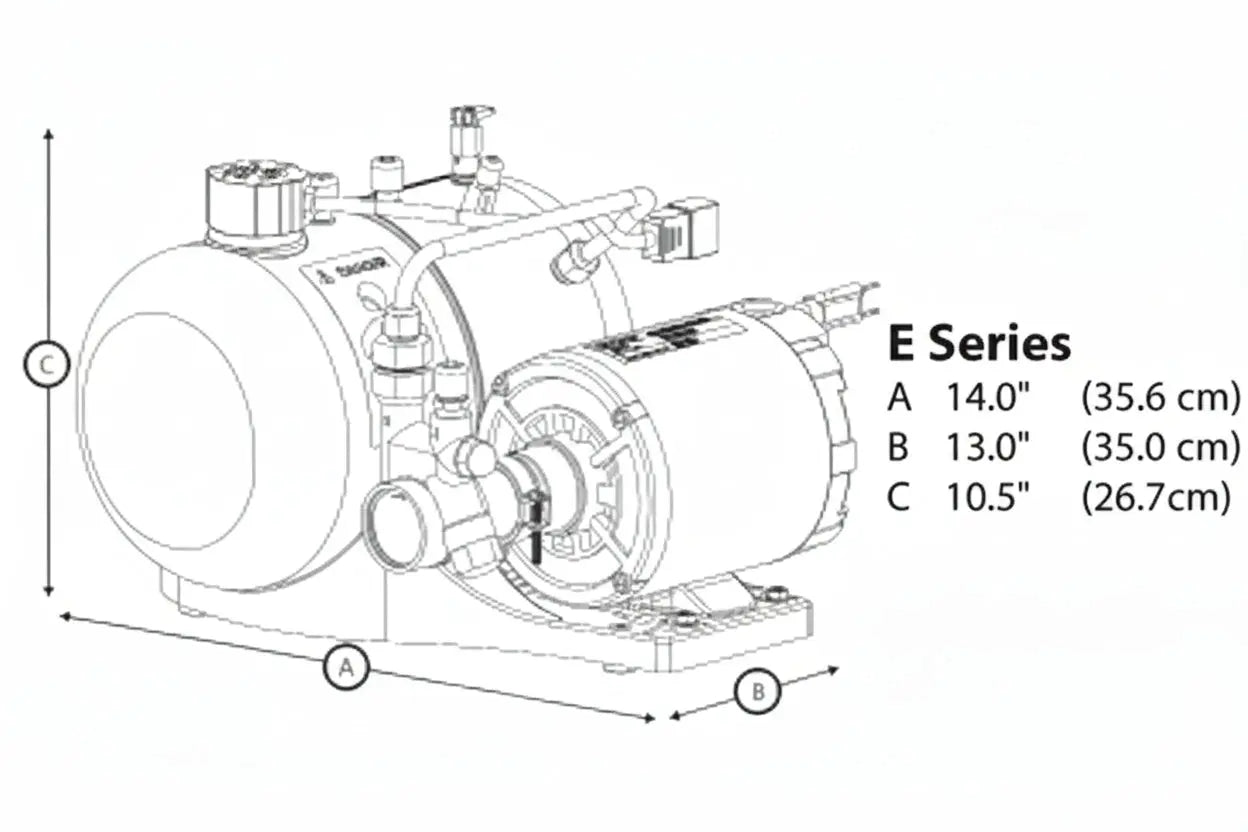

• Dimensions: 10-1/2" H × 14" W × 13" D

• Shipping Weight: 28 lbs

• High-Performance Rotary-Vane Brass Pump
  Delivers atomized water efficiently to the carbonator tank for consistent carbonation. Includes a built-in 100-micron strainer and pressure relief valve for added protection and reliability.

• Diamond Brite™ Stainless Steel Construction
  Corrosion-resistant housing that’s easy to clean and built to withstand demanding commercial environments.

• Innovative Two-Piece Probe Design
  Reduces service time, simplifies diagnostics, and lowers maintenance costs. Service can be performed without shutting off CO₂ or water.

• 115V AC Operation
  Standard 115-volt AC model designed for dependable performance.

• Fully Encapsulated Electronics Module
  Removable electronics package allows for convenient testing and servicing — no need to depressurize the tank.

• Spike-Resistant Probe Electronics
  Engineered to withstand amperage spikes for enhanced durability and long-term reliability.

• Advanced Liquid-Level Control System
  Liquid-level float assembly and heat-sink probe cap promote smooth operation and extend overall service life.

• Vibration-Reducing Base Design
  Injection-molded base with rubber isolation feet minimizes noise and vibration during operation.

• Integrated Backflow Prevention
  Includes Anderson Brass ASSE 1022-specified backflow prevention device for code compliance and system protection.
