Chill-Max 1/2 HP Double Pump Glycol Power Pack, 4080 BTU's

MUST SHIP FREIGHT — CANNOT SHIP UPS GROUND

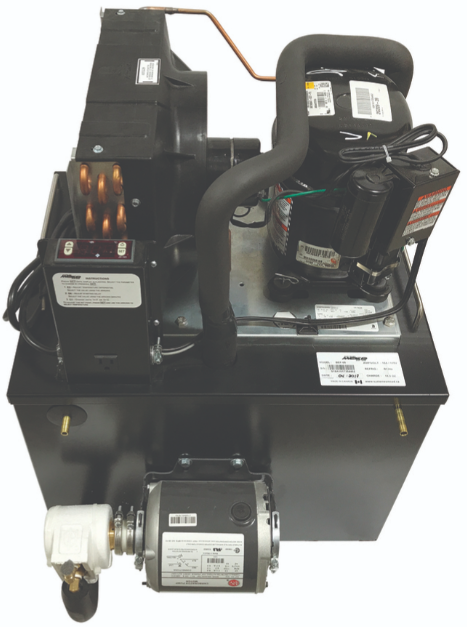

Chill-Max 1/2 HP Double Pump Glycol Power Pack — 4080 BTU

Commercial glycol chiller with dual pump circulation for long draw draft beer systems up to 225 ft. Pairs 4080 BTU cooling capacity with two glycol circulation pumps. Includes a digital thermostat for precise glycol bath temperature control.

Specifications

• 1/2 HP air-cooled compressor
• R134A Refrigerant
• Digital Thermostat
• Bath Capacity: 17 GAL / 64L
• Chilling Capacity: 4080 BTU/HR
• 120V, 60HZ, 15 AMP Circuit
• Max. Distance to Tower: 225' / 68M

Service Manual (PDF)

Warranty

18 months parts & labor from date of installation (not to exceed 19 months from shipment). Compressor warrantied for an additional 42 months. Circulation pumps and motors are excluded from all warranties — 30 days only to cover startup. Installation cost to replace a compressor after 18 months is the responsibility of the end user.

Also available: 1/2 HP Single Pump version | 3/4 HP Double Pump 6138 BTU
